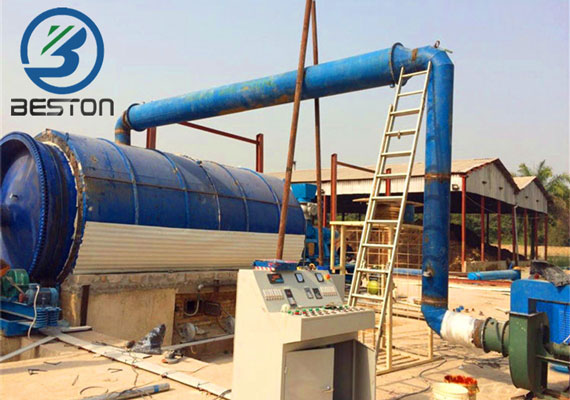

As a mature professional tyre recycling plant manufacturer in China, we have designed the latest tyre recycling plant for sale. This plant not only solves the pollution problem of the waste tires, but also brings more profits for customers.
The waste tyre recycling plants are rapidly accepted by customers for its advanced pyrolysis technology. Finally, we can get about 45% tyre oil, 35% carbon black and 15% steel wire. And these end products have a relatively wide range of applications, so they will surely get your cost back soon and bring great benefits for you.
The following are the main parts of our plant:
1. Heating system
The reactor uses Q245R boiler plate as material, and its thickness is 16mm. Moreover, the structure form is horizontal-type and 360-degree rotating, and the rotate speed of reactor can reach 0.4-0.8turn/minute. This special design makes the bottom of reactor get heated evenly, which lengthens the service life of reactor as well as improves the pyrolysis efficiency.
2. Condensing system
Compared with the general condensers, our tubular condenser has the advantages of larger cooling area,better cooling effect and easier maintenance. So it can further ensure and improve the oil yield efficiency.
3. Dedusting system
In the dedusting system, three steps (dust chemical removing tank, ceramic ring filtering system and alkali sprayers) are used to dedust the hot smoke from reactor, and more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged in the air directly.
4. Discharging system
Adopting auto discharging system, carbon black can be discharged automatically, which can save much manpower and cost for customers.
5. Safety device
Hydroseal and vacuum system will prevent exhaust gas from going back to condensers and reactor. Thus, unnecessary accident can be avoided. In addition, the plant is equipped with safety device (alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices), which can avoid danger in the production process and guarantee safety.
In addition, if you want to know the waste tyre recycling plant price, you can contact us online or leave a message! We will reply to you within 24 hours.
| Model | BLJ-6 | BLJ-10 | BLJ-16 | BLL-20 |
| Daily Capacity | 6T | 8-10T | 15-20T | 20-24T |
| Working Method | Batch | Semi-Continuous | Fully Continuous | |
| Raw Materials | Waste Plastic, Tyre, Rubber, Oil Sludge | |||
| Reactor Size | D2.2*L6.0m | D2.6*L6.6m | D2.8*L7.1m | D1.4*L11m |
| Pattern | Horizontal & Rotary | |||
| Heating Materials | Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc. | |||
| Total Power | 24kw/h | 30kw/h | 54kw/h | 71.4kw/h |
| Floor Area (L*W*H) | 30*10*8m | 30*10*8m | 40*10*8m | 45*25*10m |
| Operating Pressure | Normal Pressure | Constant Pressure | ||
| Cooling Method | Water Cooling | |||
| Service Life | 5-8 Years | |||
